ROTARY JOINT/SLIP-RING
Based on our patented technology related to rotary joints, we develop and produce rotary joints used throughout the defense industry.
ELLINKS has unrivaled customer responsiveness by performing all processes in-house, from product design to processing, joining, assembly, testing, and tuning.
ELLINKS slip rings provide a semi-permanent life by implementing a low friction coefficient of brushes, and we also develop and produce rolling assemblies that combine rotary joints and slip rings.
Ka-Band 2axis rotary joint
Waveguide WR-34
0.7dB Loss
WOW is Good
2CH coaxial rotray joint
DC~2GHz
VSWR WOW is Good!

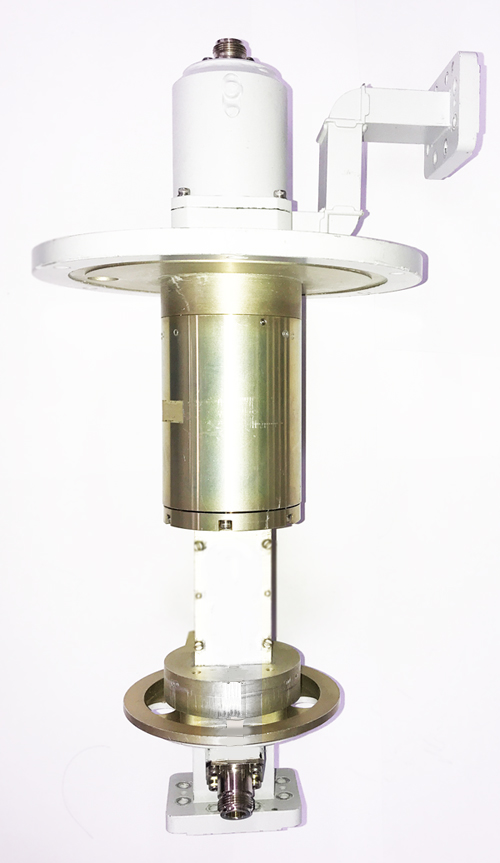

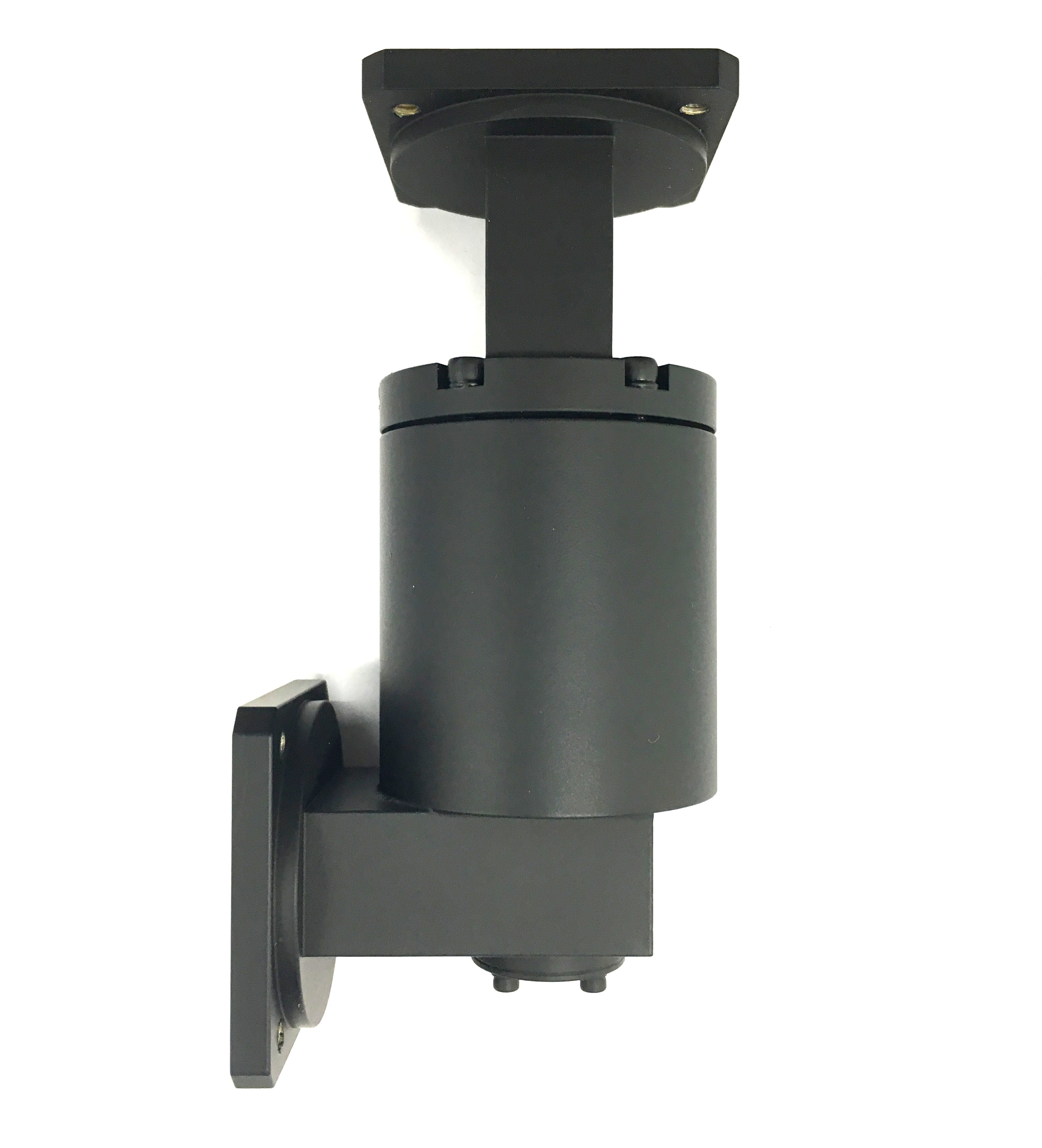

L Type X-Band Rotary joint
2CH Rotary Joint
Coaxial channel: DC~12.8GHz
Waveguide channel: X-Band

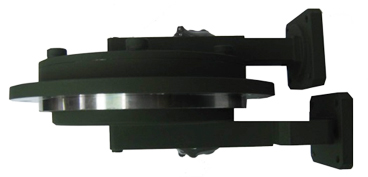

C-type Ku-band Rotary joint
0.2dB loss
Ku-band
VSWR and Insertion loss WOW is very Good!

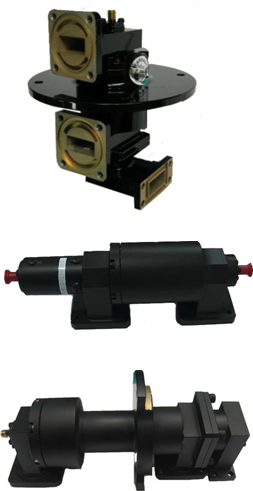

2CH Rotary Joint
Type1: Waveguide, Waveguide to 2.92mm
Type2: Waveguide, 2.92mm to 2.92mm
Type3: Waveguide, Waveguide to 2.92mm
0.3dB Loss for Waveguide CH
WOW is Good!
2.92mm Rotary Joint
DC to 27GHz

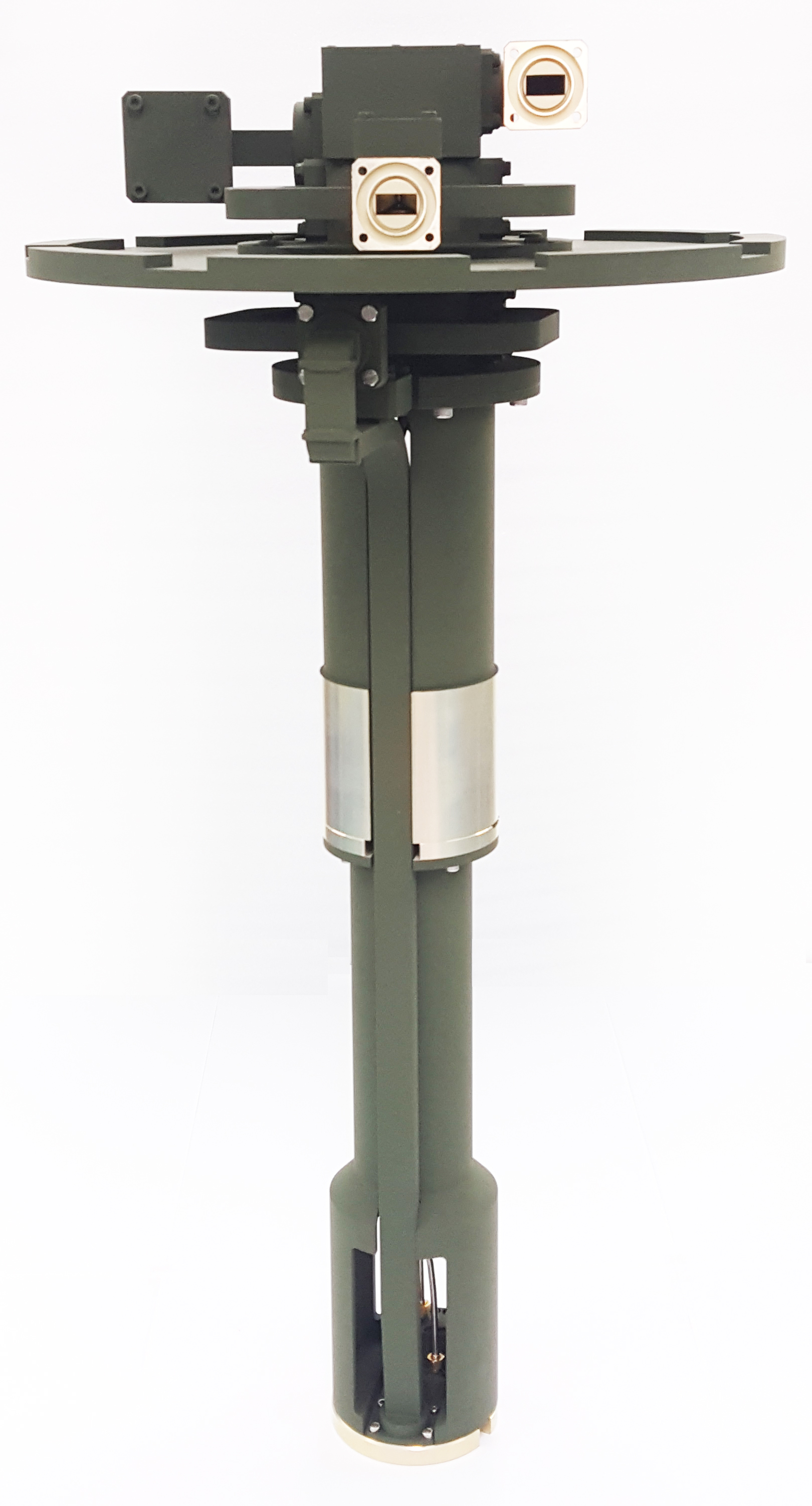

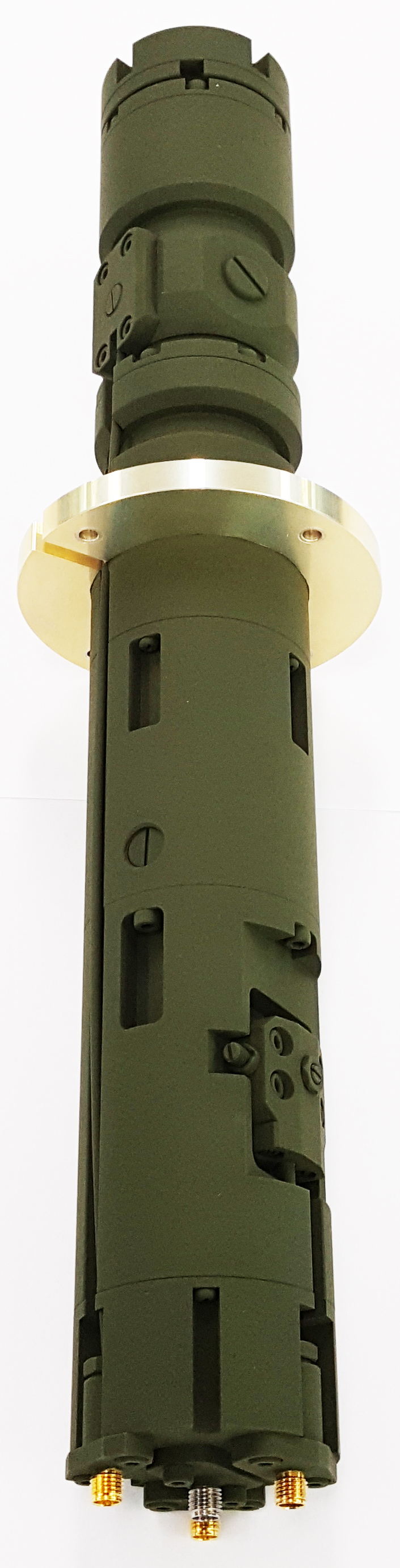

Rotary Joint assembly
WR-112 CPR flange X-Band 2CH rotary joint
slip ring 45CH

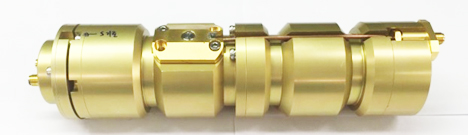

4CH Coaxial Rotary Joint
L-Band 2CH, X-Band 1CH, KU-Band 1CH
Low loss

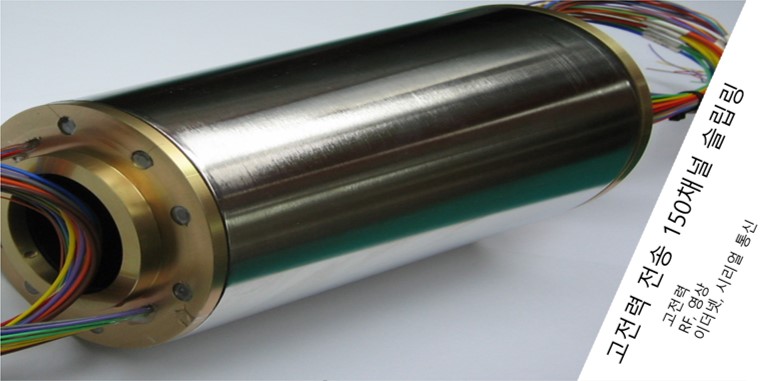

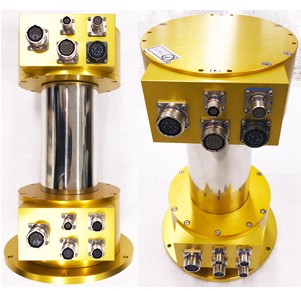

150CH Spip-ring
Slip ring with a hollow space in the center of the slip ring
5CH Rotary Joint
L-Band 2CH SMA
X-Band 1CH WR-112

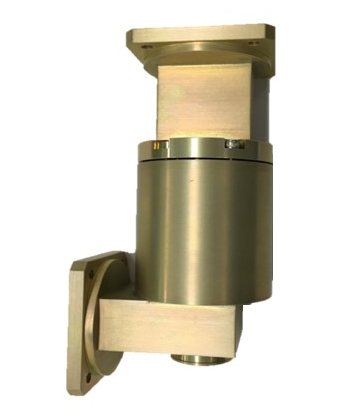

WR-62 KU-Band 5kW 1CH
WR-62 KU-Band 100W 1CH
