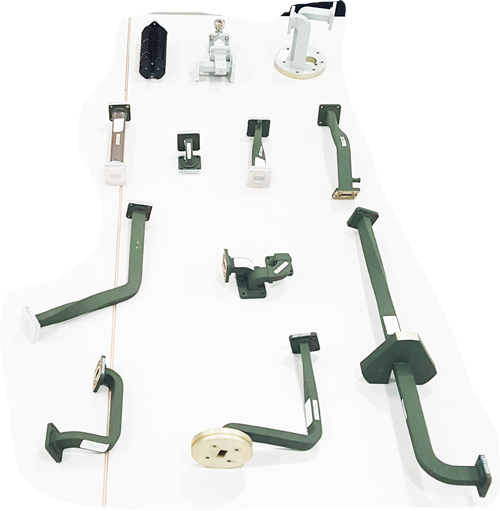

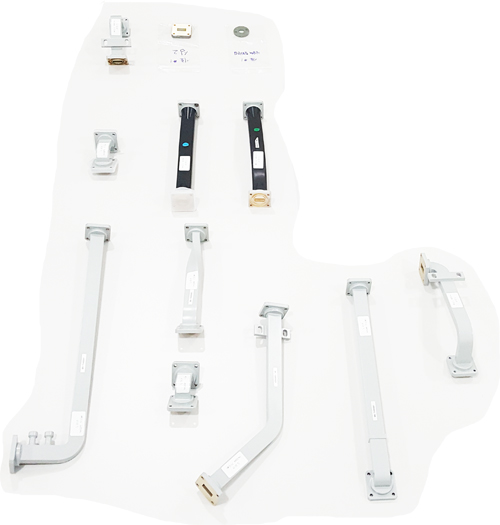

Waveguide Modules, Waveguide Components
We have the development technology and production capability for
all waveguide components and assemblies required for satellite communications and radar.
In addition, we have achieved price competitiveness by conducting all processes in-house.
Waveguide RF Unit for Radar
We can independently develop and produce all the parts required for waveguide assemblies for tracking radars and seekers, and develop and produce the entire assembly with BITE circuits applied.
In particular, Ellinks' products boast very low loss and are suitable for precision tracking radars.

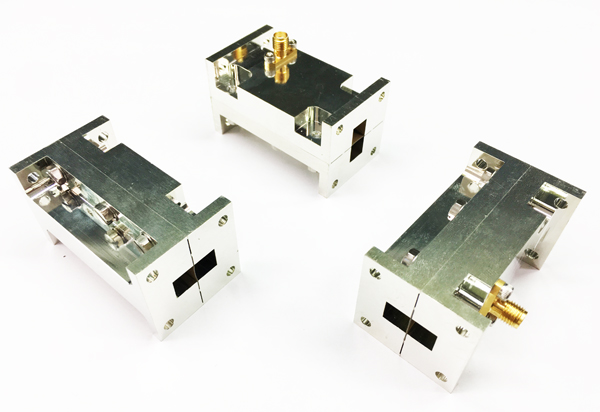

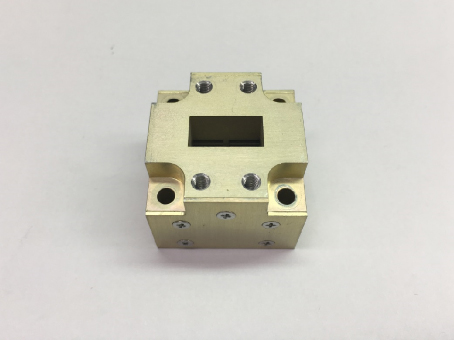

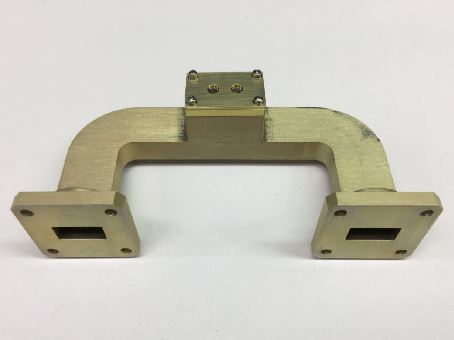

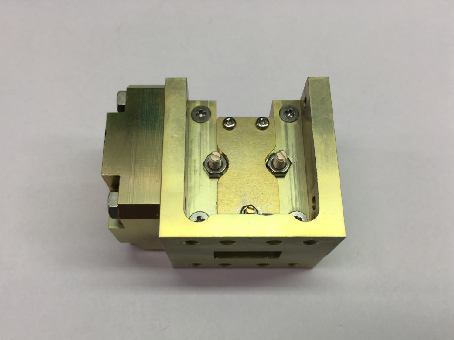

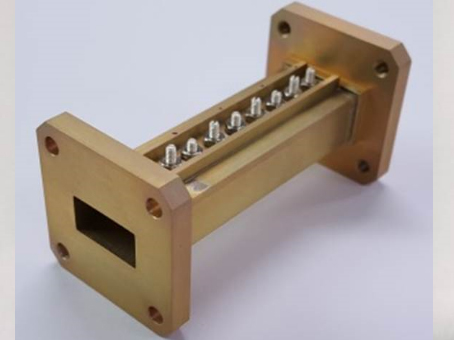

Waveguide Mixer, Waveguide Limiter, Waveguide Magic-T, Waveguide Coupler, Waveguide Circulator, and waveguide Isolator, Phase Shifter, Harmonic Filter, Waveguide Bandpass Filter, Bandstop Filter, Waveguide LNA, Other Waveguide Twist Band

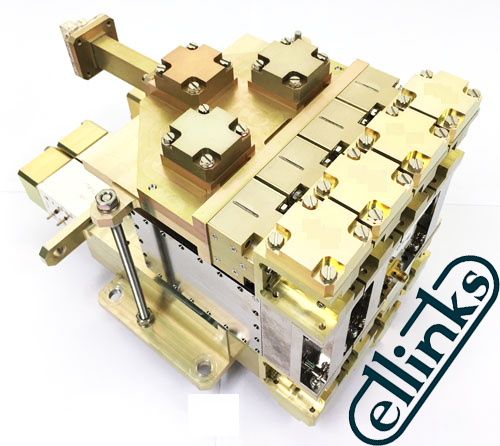

Waveguide Front End Unit for Radar System
Ellinks's transmitter/receiver front-end for submarine tracking and detection radar boasts very low loss and all development, production, and processing are done in-house, allowing for very fast response times.

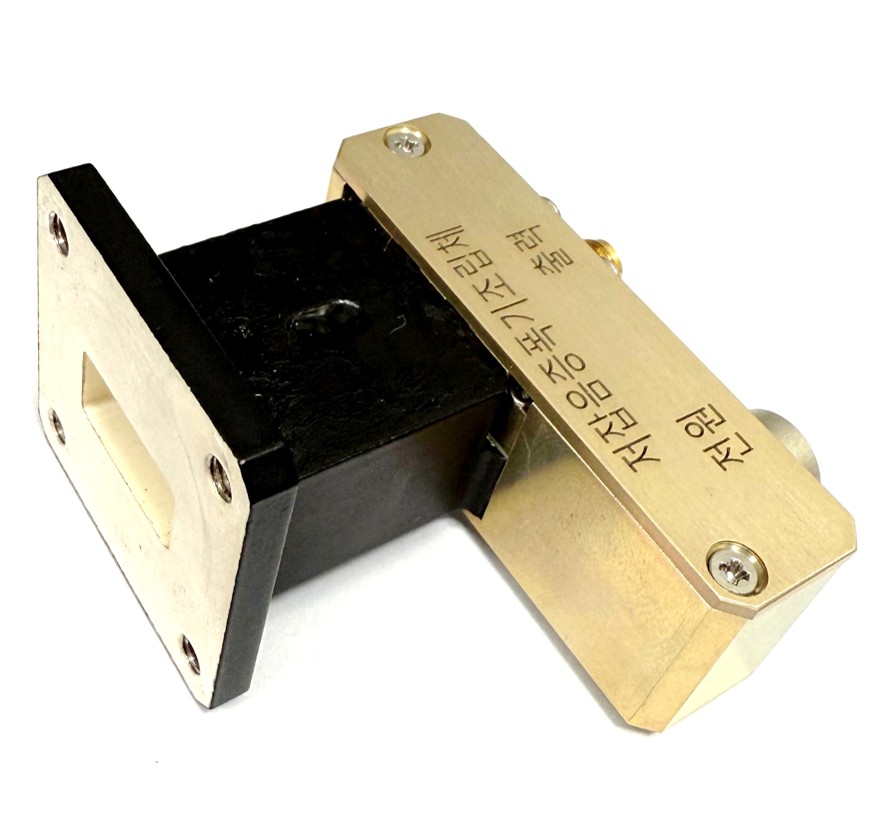

Waveguide mixers, waveguide limiters, waveguide Magic-T, waveguide couplers, waveguide circulators, isolators, harmonic filters, bandpass filters, bandstop filters, waveguide LNAs

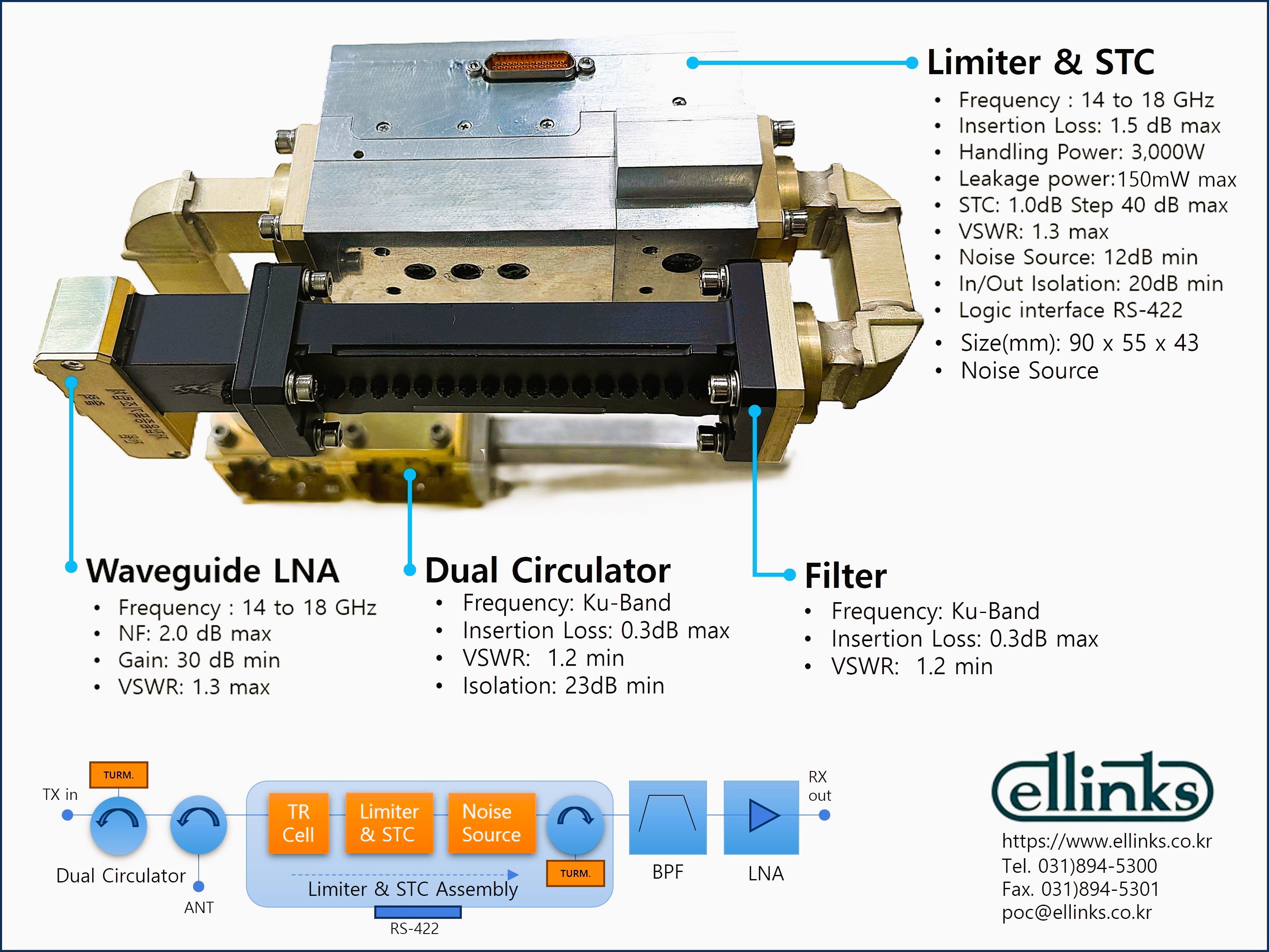

Transceiver Front End
It has a built-in BIT circuit that filters the EZ, EL, and SUM high-frequency signals of military ship tracking radars to amplify weak signals, and generates its own radar RF signal to check for internal abnormalities. It also has a limiter and STC function to protect the receiving circuit from high-power transmission signals.
It has a built-in BIT circuit that filters the EZ, EL, and SUM high-frequency signals of the tracking radar to amplify weak signals and generates its own radar RF signal to check for internal abnormalities. It also has a limiter and STC function to protect the receiving circuit from high-power transmission signals.

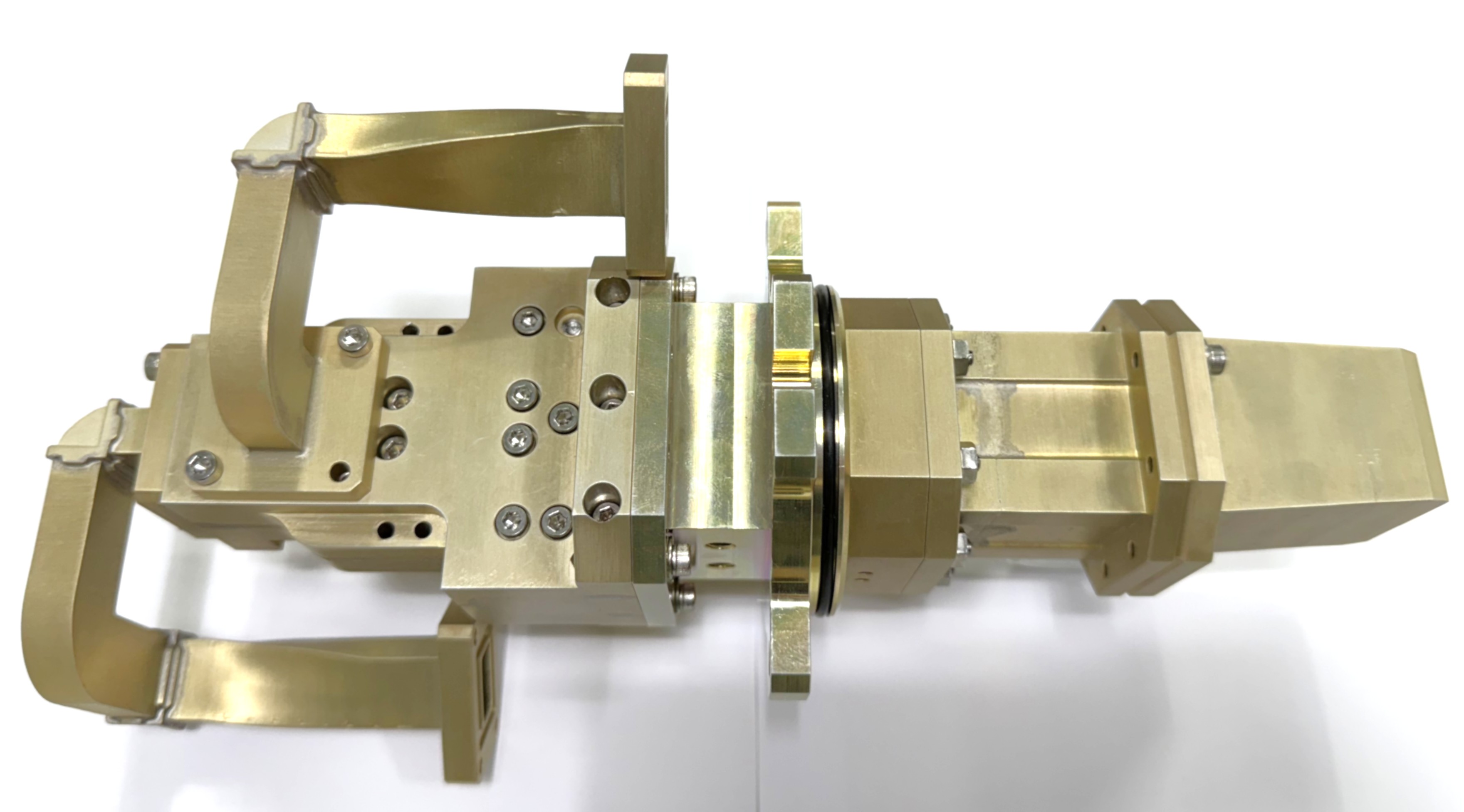

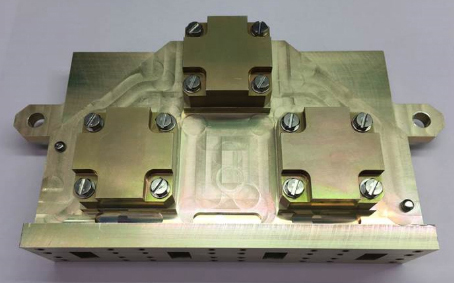

Monopulse Comparater
The Monopulse Comparator from Ellings for tracking radar is a core waveguide assembly developed with an extremely low sidelobe level to enable tracking radar to precisely find the target's position, i.e. the azimuth and elevation directions. It consists of three Magic Tees and various waveguides.
Ellinks' Monopulse Comparator is a core waveguide assembly developed with an extremely low antenna sidelobe level to enable tracking radars to precisely find the target's location, i.e. the azimuth and elevation directions. It consists of three Magic Tees and various waveguides.
